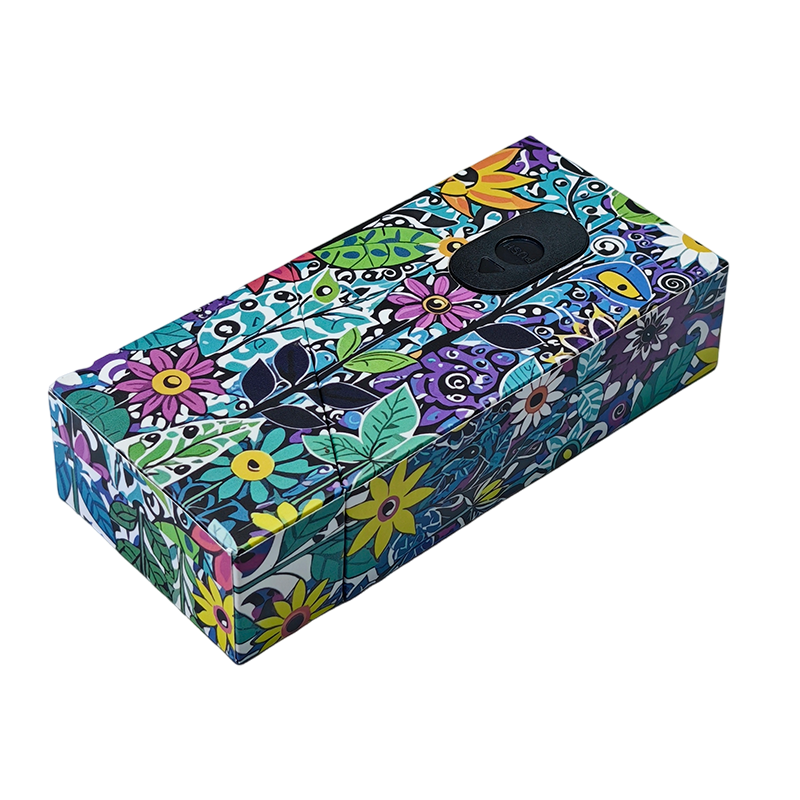

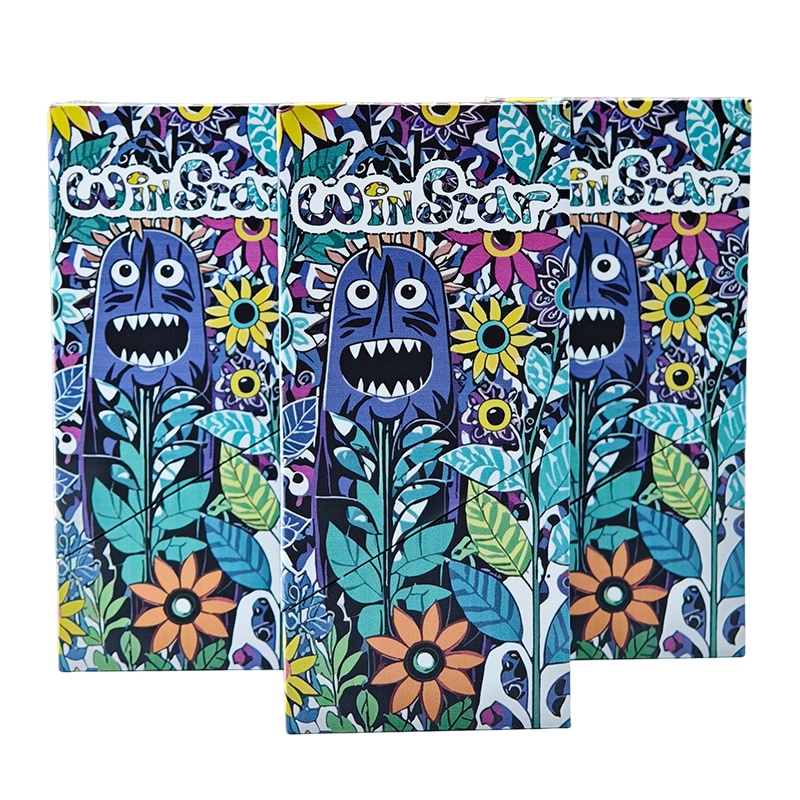

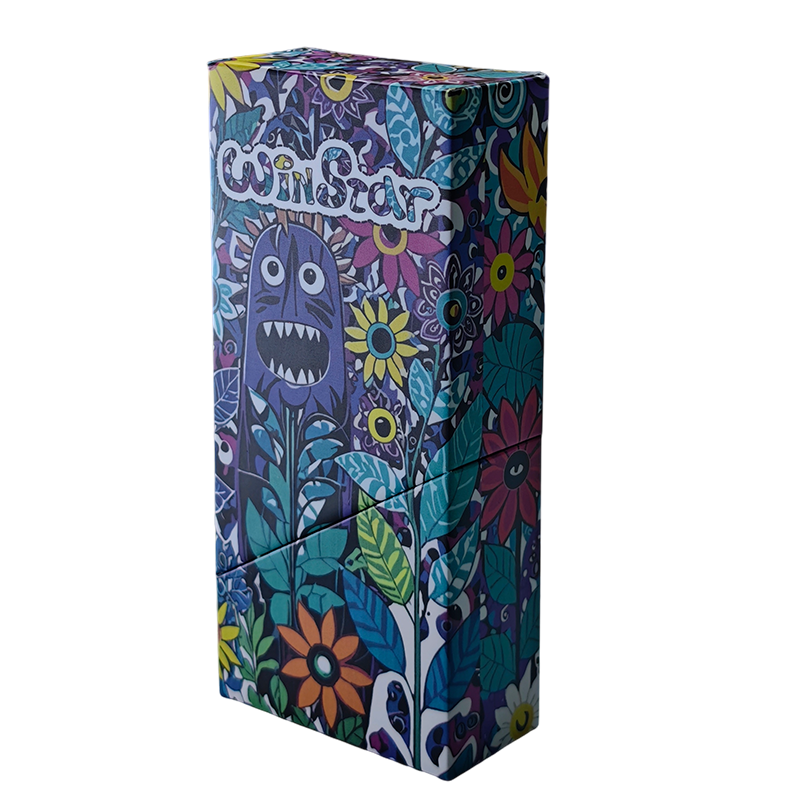

Custom Paper Drawer Box for Vape Cartridges

Give your cartridges the premium unboxing they deserve. This rigid paper drawer box is engineered for 0.5 mL and 1.0 mL 510-thread cartridges, combining protection, shelf impact, and full-surface branding in one retail-ready package.

Highlights

• Purpose-built for vape cartridges: snug, rattle-free fit with a custom insert shaped to your exact cartridge style.

• Rigid, gift-grade construction: wrapped paper over thick greyboard for a sturdy, luxurious hand-feel.

• Slide-out drawer with angled sleeve notch: easy open/close while staying secure in transit.

• Full customization: size, graphics, finishes, inserts, windows, and security options.

• Sustainable choices: FSC® paper, plastic-free molded pulp inserts, soy inks, and aqueous coatings available.

• Retail & compliance friendly: space for barcodes, batch/strain labels, warnings, QR codes, and tamper-evident seals.

• Optional child-resistant structures: push-and-slide or locking sleeves available and can be tested to 16 CFR 1700.20 upon request.

Structure & Materials

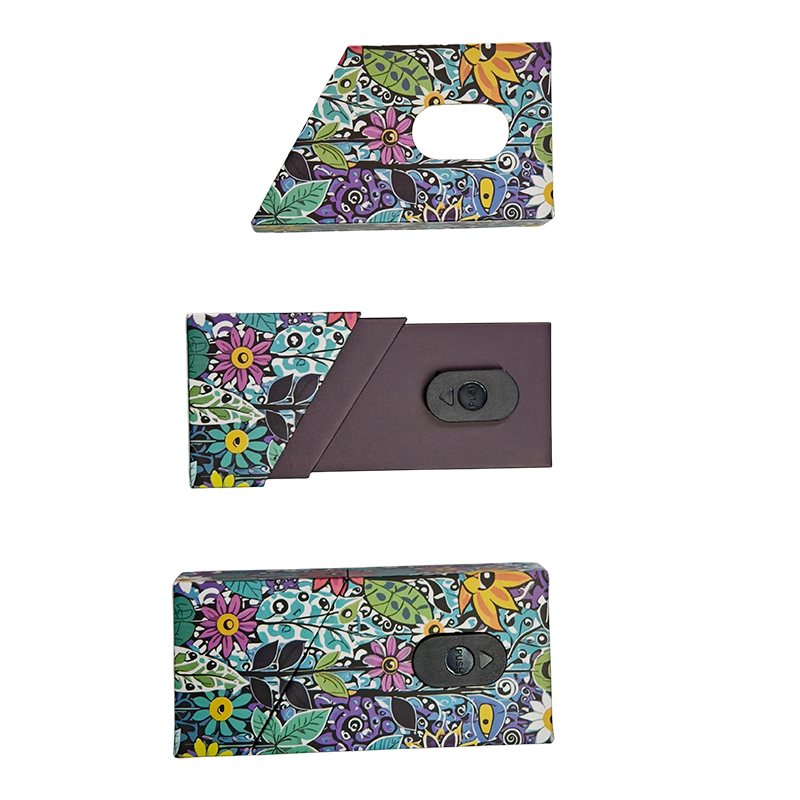

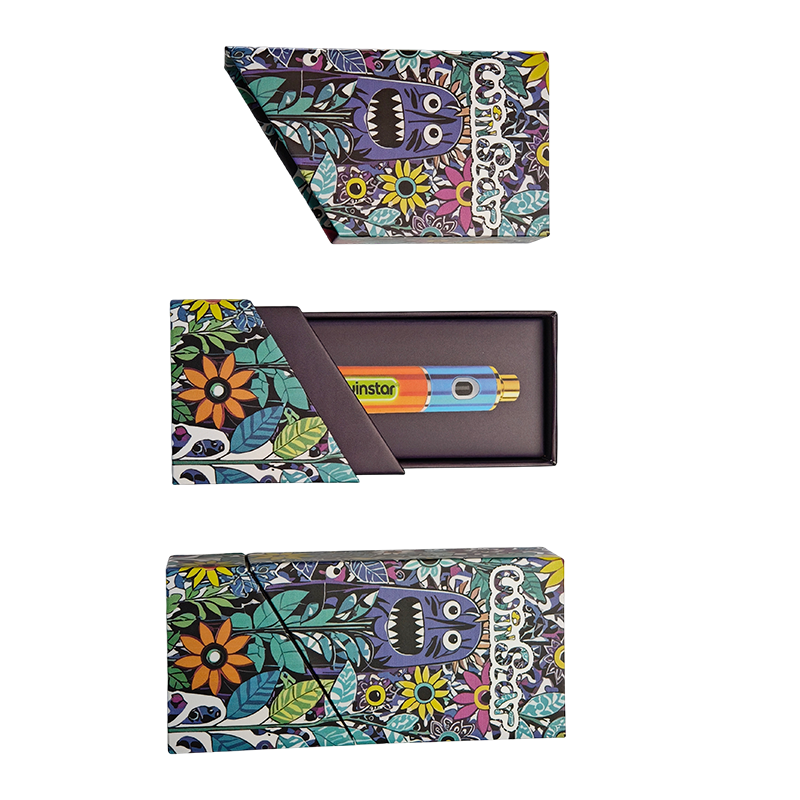

• Box style: rigid sleeve + drawer (“matchbox”) with a diagonally cut thumb notch for smooth sliding.

• Board: 900–1200 gsm greyboard (thickness 1.0–1.5 mm) wrapped with 157–200 gsm coated art paper.

• Finish options: matte/gloss/soft-touch lamination; spot UV; emboss/deboss; foil stamping (gold, silver, holographic, custom Pantone foils); textured papers; inside printing.

• Inserts (choose one or combine):

• EVA foam (black/white, velvet flocking optional) precisely CNC-cut to your cartridge;

• Plastic-free molded paper pulp for a recyclable mono-material pack;

• Cardboard cradle with printed graphics;

• PET tray (recyclable) if you prefer a clear insert.

• Security: tamper-evident stickers, shrink bands, perforated tear tapes, or hidden glue points.

Sizing & Compatibility

• Cartridge types: 510-thread carts (flat/round mouthpieces), 0.5 mL or 1.0 mL; custom cavities for proprietary cartridges.

• Common internal cavities (customizable):

• 0.5 mL: Ø 10.5–11.2 mm × L 52–56 mm

• 1.0 mL: Ø 10.5–11.2 mm × L 62–66 mm

• Typical outer box (fully custom): ~100 × 50 × 25 mm (3.9 × 2.0 × 1.0 in). We size the insert and walls to your exact device to eliminate rattle and save freight.

Printing & Branding

• Color: Offset CMYK + spot Pantone; color-critical jobs supported.

• Artwork coverage: edge-to-edge on sleeve and drawer; optional inside prints for storytelling or legal copy.

• Brand effects: raised spot UV on logos, tactile soft-touch lamination, multi-foil accents, or holographic film for high-impact SKUs.

• Traceability: serialized QR/UID printing, batch fields, and GS1/EAN/UPC barcodes.

Sustainability Options

• FSC-certified paper stocks, plastic-free molded pulp inserts, soy/vegetable inks, water-based varnishes, and minimal-ink layouts.

• Mono-material builds (paper box + paper insert) to simplify recycling.

• Collapsible rigid versions available on request to reduce shipping volume.

Compliance-Ready Layouts

• Dedicated panels for age/warning statements, ingredients, net contents, Prop 65 (where required), batch/date/Lot fields, and jurisdictional icons.

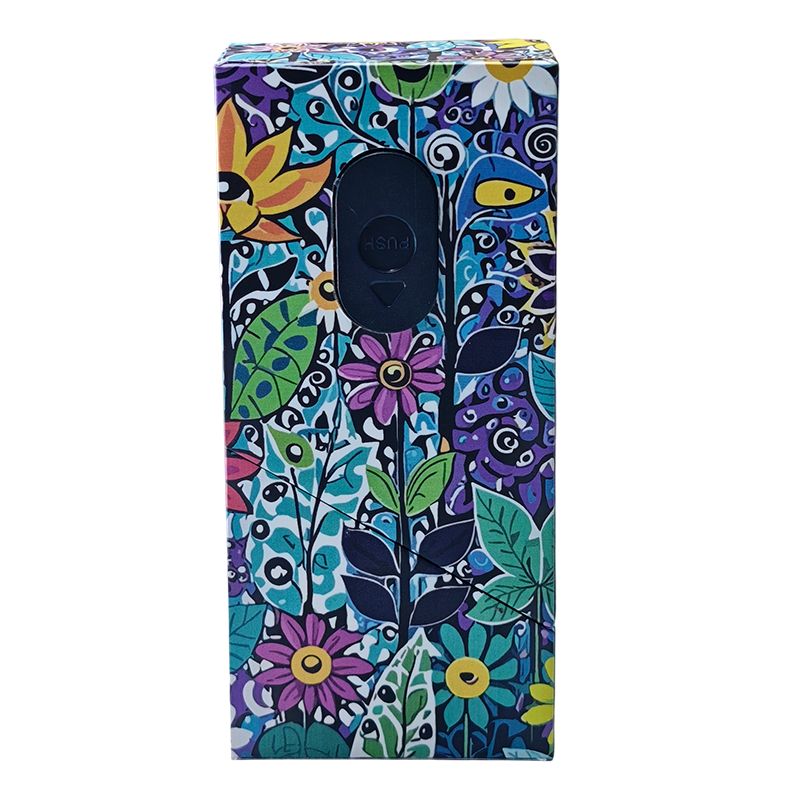

• Child-resistant (optional): push-button or push-and-slide mechanisms with testable CR performance (16 CFR 1700.20). Ask for our CR drawer sleeve if your market requires it.

Order Details

• MOQ: 500–1,000 units typical (lower for plain blanks; higher for complex finishes).

• Sampling: plain-white or fully printed prototypes available before mass run.

• Lead time: samples ~5–7 days; production ~12–18 days after proof approval (finishes and CR structures may add time).

• Packing: rigid boxes ship assembled and nested with corner guards; collapsible options ship flat.

• Logistics: air, sea, or courier; we can match your master-carton specs and pallet patterns.

Use Cases

• Dispensary shelves and display kits

• White-label launches and influencer collaborations

• Limited editions and holiday bundles

• Subscription boxes and DTC shipments

What’s Included

• Custom rigid sleeve + drawer box

• Selected insert cut to your cartridge

• Printing/finishes as specified
  (Cartridge not included; packaging only.)

How to Specify Your Box (Quick Checklist)

1. Cartridge drawing or sample (diameter, length, mouthpiece shape).

2. Preferred insert (EVA foam / paper pulp / cardboard / PET).

3. Outer dimensions (or we size to fit your device + label).

4. Artwork files (AI/PDF with 3–5 mm bleed; fonts outlined).

5. Finishes (lamination, foil color, spot UV, emboss/deboss).

6. Compliance (CR needed? warning/age icons? barcode/QR?).

7. Sustainability (FSC paper, plastic-free insert, aqueous coat).

FAQs

Q1: Can the insert hold more than one cartridge?
Yes. We can design 2-pack or 3-pack cavities and add a divider or tiered tray.

Q2: Do you offer windows to display the cartridge?
Absolutely—die-cut windows with clear PET (or plastic-free cellulose film) are available.

Q3: Will the cartridge move during shipping?
No. We tolerance the cavity to your sample to prevent shake; add tamper labels for extra security.

Q4: Can this be child-resistant?
Yes. Choose our CR push-and-slide sleeve or add a locking feature; we can arrange third-party testing.

Q5: Is the box recyclable?
Paper components are widely recyclable. For full recyclability, choose paper wrap + paper insert and aqueous coatings.

Q6: Can I print different strains/SKUs in one order?
Yes. We support variable data or split runs by design (MOQ per SKU may apply).

Q7: Do you print inside the drawer too?
Yes—great for brand storytelling, instructions, or lab results QR codes.

Q8: Can you match a specific Pantone color or foil?
We can Pantone-match inks and offer multiple foil shades, including holographic.

Q9: Do you provide dielines?
Once size and structure are confirmed, we send a custom dieline for your designer.

Q10: What if my cartridge changes later?
We can re-cut inserts for a new fit while keeping the same outer sleeve artwork.

Note: Regulations for vape and cannabis packaging vary by region. Always confirm your local labeling, warning, and child-resistant requirements—our team can adapt the box structure and artwork panels to meet them.
